Tube Laser Cutting Machine Supplier

Victory Industry is a tube laser cutting machine supplier based in Jinan, Shandong, China. We manufacture laser equipment and supply a range that includes dedicated tube cutting, combined tube-and-sheet equipment and the V100 structural steel profile machine. The company was founded in 2018. Our headquarters brings together research and development, manufacturing and customer support, so equipment selection and the services around a purchase can be discussed with the same company.

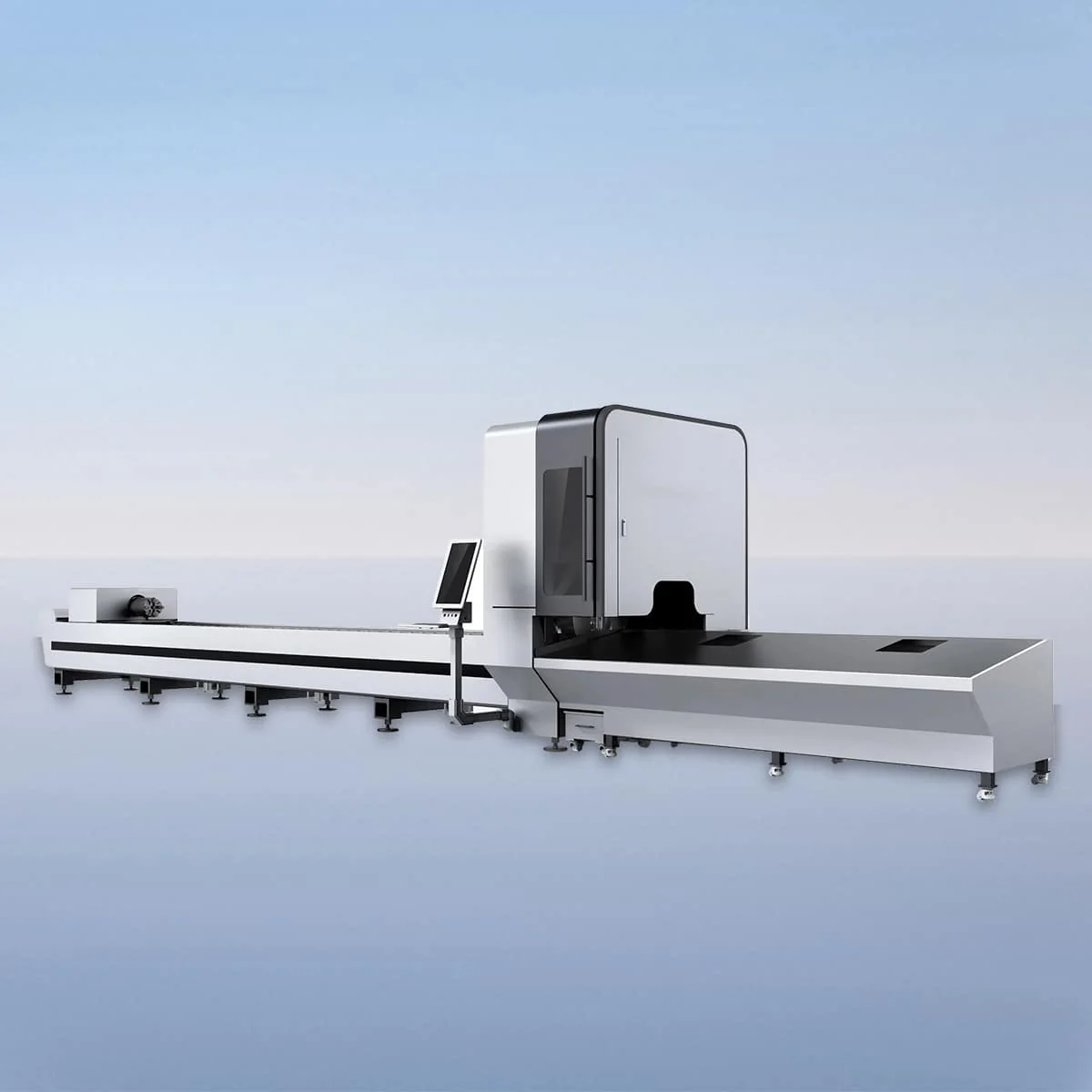

VIT6022 has a Cutting Area entry of 6000*220mm; VIT6035 has 6000*350mm. Both share the 1000-6000W Laser Power range and the same component alternatives. Their model names therefore distinguish the area entries without selecting a fixed power for an order. Raytools, WSX, BOCI and Osprey are the laser head alternatives, while Raycus, MAX and IPG are the generators. Keep Cutting Area as the field name when comparing a section; it is not a diameter limit for every possible shape.

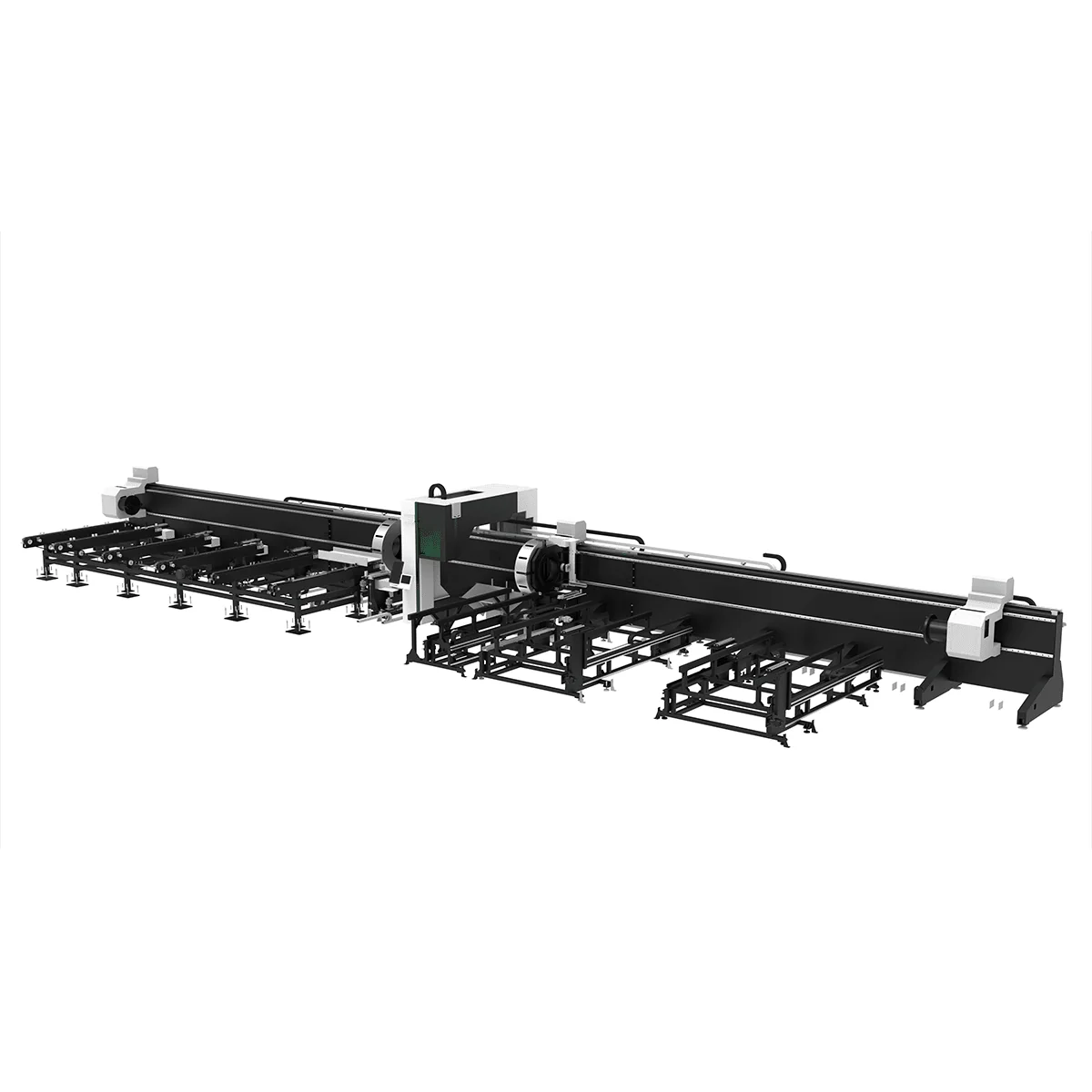

VIT-F35, VIT-F52 and VIT-F85 have Working Area entries of 12000*350mm, 12000*520mm and 12000*850mm. The series specification gives a Laser Power range of 12-20kw and lists Max/IPG under Laser Source. FSCUT is the Control System entry. Machine Size appears separately from Working Area, preserving the distinction between an equipment dimension and a processing field. Those fields give VIT-F a specification of its own, rather than a collection of values to combine with the VIT models.

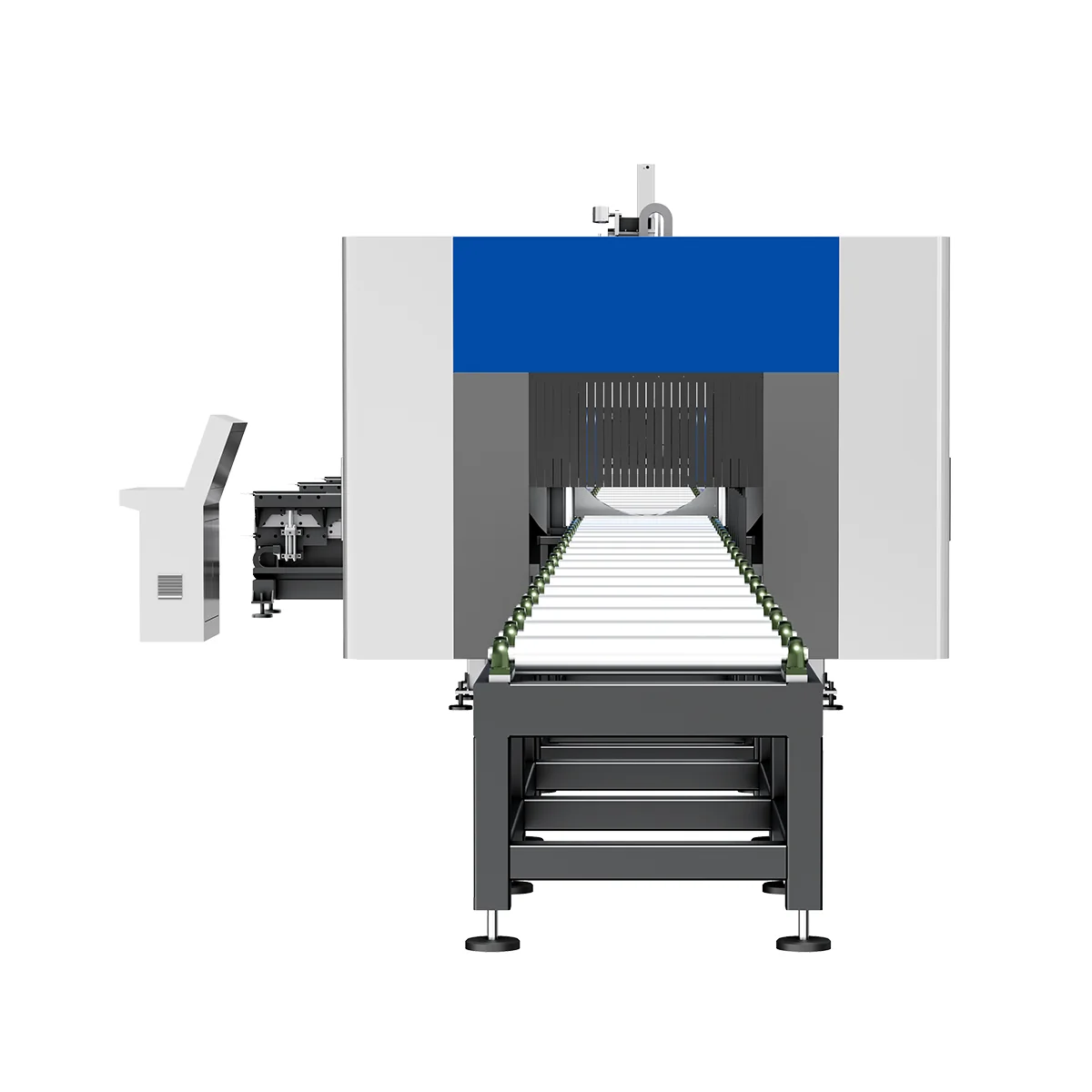

V100 makes handling and clamping explicit in its specification. Minimum Clamping Wall Thickness is ≥5.0 mm, and Maximum Single-Workpiece Load Capacity is ≤5T. Loading Method is Manual loading, with Loading Length stated as 12000 mm. The page also provides Tube Processing Range and the individual axis travel fields. Read these entries beside the profile drawing, length and weight. They belong to V100 and should stay together when its requirements are compared with the proposed material route.

Our laser equipment manufacturer role does not turn component alternatives into one fixed package. VIT offers CypCut and Weihong in its Control System field; its Servo Motor And Driver alternatives are Fuji, Delta and Yaskawa. VIT-F identifies FSCUT for control and Max/IPG for its source. A useful equipment description keeps each selection beside its model. That makes the supplied configuration visible without asking the reader to choose between several brand names scattered through an offer.

A tube machine shares its working space with long stock and finished pieces. Use a layout to show where material will wait, its approach to the proposed machine and the exit route after cutting. Mark doors, aisles and nearby equipment, along with handling equipment already available. This separates a machine-size comparison from the wider installation question. When loading or unloading equipment is requested, it can be identified as a distinct part of the supply instead of being assumed from a photograph.

Victory Industry provides installation and commissioning, training, technical support, maintenance and upgrades. These services concern different points in the equipment's working life: a new installation, an operator learning the machine, or an existing unit that needs attention. Identify the stage and the equipment involved. For a tube cutting project, the installation destination, current handling arrangement and operating team's needs are useful service information; for an upgrade, include the present model and configuration. The proposal can then state the relevant scope.

Our published Jinan address is PingAn Industrial Park, NO.9566 Jingshi West Road, Changqing District, Jinan City, Shandong Province, China. Contact Victory Industry at [email protected] or +86-185-2095-8834. Send the section drawing and intended work with any model you are considering. Quantities, the destination and purchasing schedule provide the commercial context. If a component or handling decision remains open, identify that question directly so it can be addressed with the equipment request.
